Original Oil Drain Valve with 3/4-16 UNF

Description

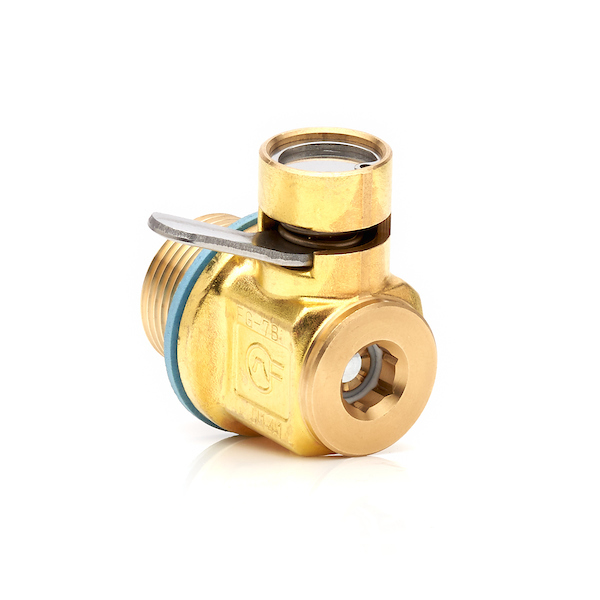

Oil drain valve T-204

(CAT 1100, 1140, 1145, 3054, 3056, 1150, 3100, 3208, 3126B, 3126, C-6, C-6.6, 3116 (with 28L oil pan), 3126E (with 28L oil pan), C-7, C-9 & 3126 (Side drain port location)

Thread size: 3/4-16 UNF
Sealing: Fiber Gasket
Body: Forged brass
Handle: Stainless steel
Spring: Stainless steel
Ball: Brass (chrome plated)
RoHS: Complied (2015/863)
Hydraulic test pressure: 0.6 MPa
Leakage test pressure: 0.10 MPa
Pressure Rating: 145 PSI
Temperature Rating: -40° to 365° F
Recommended Torque: 354 in lbs (30 ft lbs)
